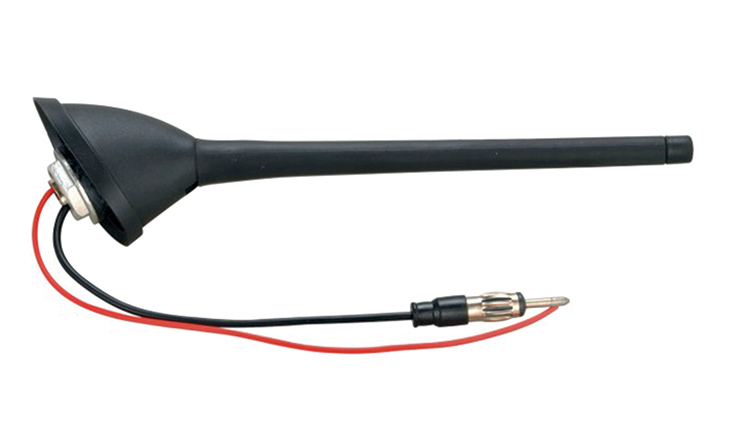

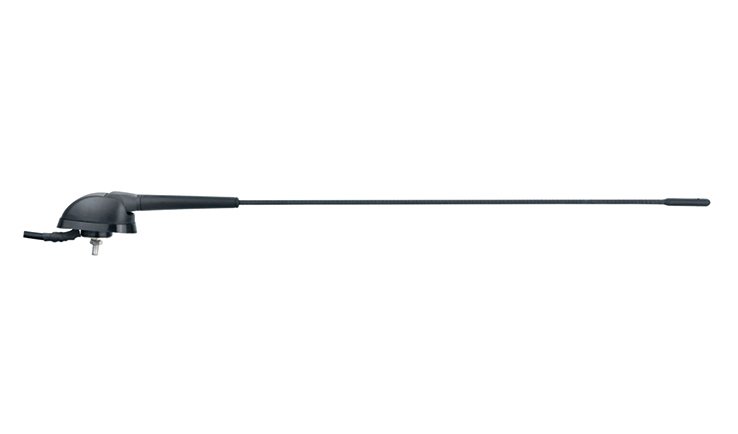

Car Antenna

36-2001

Description

1.Working Voltage:DC10.5V～16V

2.Working current: 30mA一60mA

3.Rated voltage:DC12V

4.Rated Current:40mA~50mA

5.Working Frequency:170MHz~24OMHz(Band lll)

                                  1452MHz~1492MHz (L-Band)

6.Output Gain: 15dB±3dB (Band III)

                        12dB±3Db (L-Band)

7.Gain(PCB): Radio-AM: 1013dB

                     Radio-FM:10±3d

                     DAB:20+3dB

8.V.S.W.R:≤3.0:1

9.Temperature Range:-40℃～+80℃

10.Coaxial Cable:75ohms,Length: 300mm

11.Coaxial Cable:RG-178,50Q士2Q,105PF/m土5PF

                           1.5C-2V,75Q3Q2,69PF/m土3PF

12.Mast length: 355mm
